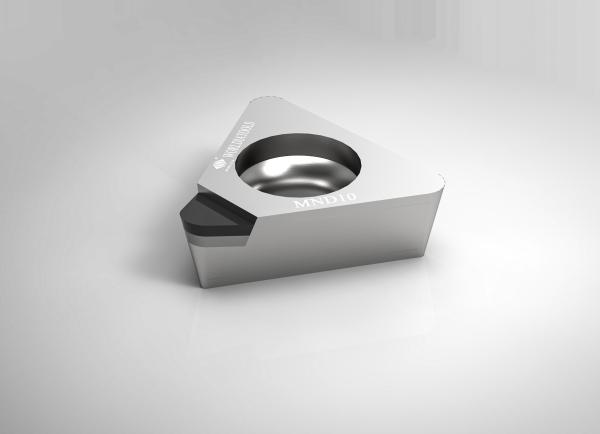

TPGT 110304 Standard Carbide Turning Insert PCD Cutting Insert for non-ferrous materials
As a high-end standard cutting tool series, MANANOVA carries out the whole process of quality
management from raw materials, with sophisticated production testing equipment, professional and
experienced R&D and production team, and professional technical services, so that every user can
continue to experience Worldia cutting tools advantages.
Description:
ManaNova, a sub-brand of Worldia, is positioned as a high-end standard series.
To meet the needs of customers as the goal, we strictly select PCD/PCBN materials to provide a universal,
stable, and efficient cutting effect.
Main products:
Worldia ManaNova series covers 7 high-quality CBN grades for the processing of hardened steel,
cast iron, and powder metallurgy, the available grades are MHN10C, MHN20C, MHN30C,
MKN10, MKN20, MSN10, MSN20.
PCBN insert: 7materials/ 1 type, universal for hardened steel, cast iron, ductile iron, and powder metallurgy.
PCD insert: Providing stable, universal, high efficient cutting effect.
PCD insert is suitable for rough and finish machining of aluminum alloy and other non-metal materials.
Advantages:
· Universal
· Easy choice
· Fast delivery
Application:
| MND10 | Suitable for the cutting of non-ferrous materials such as aluminum alloys, etc. |
PCD tools are limited to non-ferrous materials, such as high-silicon aluminum, metal matrix composites (MMC), and carbon fiber reinforced plastics (CFRP).
PCD with flood coolant can also be used in titanium super-finishing applications. |
| ·Aluminum and aluminum alloys |
| ·Copper, brass, and bronze alloys |
| ·Zinc and magnesium alloys |
| ·Carbon Fiber |
| ·Epoxy resins |
| ·Plastics |
| ·Fiberglass composites |
| ·Graphite composites |
Specification:
| Angle | Dimensions | Grade |
| ANSI Code | ISO Code | Tips | IC
mm | S
mm | R
mm | Φd
mm | LE
mm | MND
10 |
| TPGT 22.50.5 | TPGT 110302 | 1N | 6.35 | 3.18 | 0.2 | 3.3 | 2.5 | √ |
| TPGT 22.51 | TPGT 110304 | 1N | 6.35 | 3.18 | 0.4 | 3.3 | 2.5 | √ |
| TPGT 22.52 | TPGT 110308 | 1N | 6.35 | 3.18 | 0.8 | 3.3 | 2.5 | √ |
| |
| TPGT 330.5 | TPGT 160402 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| TPGT 331 | TPGT 160404 | 1N | 9.525 | 4.76 | 0.2 | 4.4 | 2.5 | √ |
| Feed rate recommendation |
| Nose radius(mm) | Ra um |
| 0.2 | 0.4 | 0.8 | 1.6 | 3.2 | 6.4 |
| Feed Rate f (mm/rev)≤ |
| 0.2 | 0.028 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 |
| 0.4 | 0.040 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 |
| 0.8 | 0.057 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 |
| 1.2 | 0.069 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 |
| 1.6 | 0.080 | 0.113 | 0.160 | 0.226 | 0.320 | 0.453 |
| 2.4 | 0.098 | 0.139 | 0.196 | 0.277 | 0.392 | 0.554 |
